Sphinx

Documentation in Action

Sphinx and Pyramid


Sphinx and Pyramid @ same meeting :)

What are the odds ?

Writing Documentation


Writing documentation is hard

Good documentation


Writing good, usable & acceptable documentation is harder

Enter Sphinx

Solid Foundation

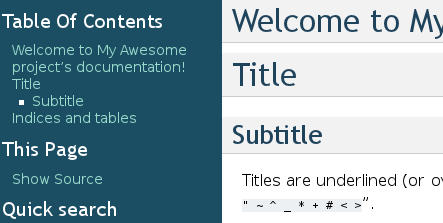

rst - Sections

Title
=====
Subtitle
--------
Titles are underlined
(or over- and underlined)
with a printing
nonalphanumeric 7-bit ASCII
character. Recommended
choices are
"``= - ` : ' " ~ ^ _ * + # < >``".

rst - Lists

Bullet lists:

- This is item 1
- This is item 2

- Bullets are "-", "*" or "+".
  Continuing text must be aligned
  after the bullet and whitespace.

rst - Admonition

.. note:: This is a note admonition.
   This is the second line

.. warning:: Don't do that

.. tip::
    Do that and good things will follow

rst - More

Complete reStructuredText reference at docutils web site

Sphinx - Quick start

$ pip install sphinx
$ mkdir docs
$ sphinx-quickstart docs
...
$ cd docs
$ make html

conf.py

TOC tree

.. toctree::
   :maxdepth: 2

   install
   quickstart
   guide
Custom directive, adds relations between the single
files and table of contents.

Labels

Use for cross referencing.

For more info see :ref:`coolproj`
.. _coolproj:

Cool Project
==============

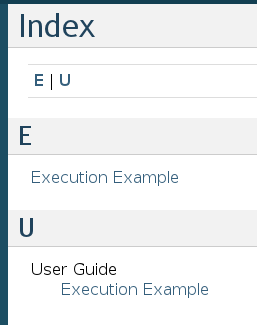

Indexing

.. index::
    single: Execution Example
    single: User Guide; Execution Example

Execution Example
====================

Python Domain

Python Domain Example

.. py:function:: format_exception(etype, value, tb[, limit=None])

   Format the exception with a traceback.

   :param etype: exception type
   :param value: exception value
   :param tb: traceback object
   :param limit: maximum number of stack frames to show
   :type limit: integer or None
   :rtype: list of strings


For more info see :py:func:`format_exception`

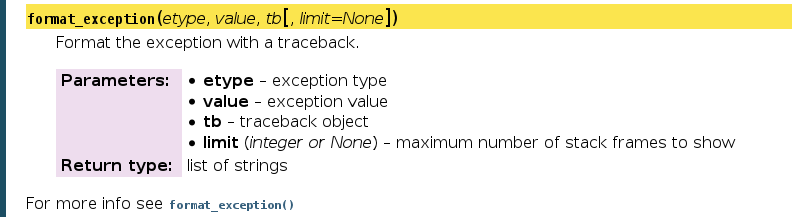

Rendered Example


Built in domains

Contrib

More domains and extensions at the Sphinx Contrib.

And many more (youtube, feed, google analytics etc.). Couldn't find a Perl domain, any takers ?

autodoc extension

Can Import modules and create documentation from docstrings.

.. automodule:: awesome
   :members:

.. autoclass:: AwesomeCls
   :members:
   :inherited-members:

Pod-POM-View-Restructured

Outputs reStructuredText that is expected to be used with Sphinx.

Verbatim sections in POD will use perl syntax hilighting by default.

pod2rst - convert .pod files to .rst files.

Hands on

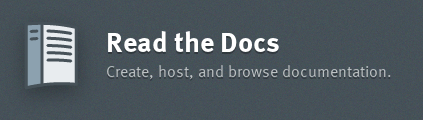

readthedocs.org


Images Credits

Contact
